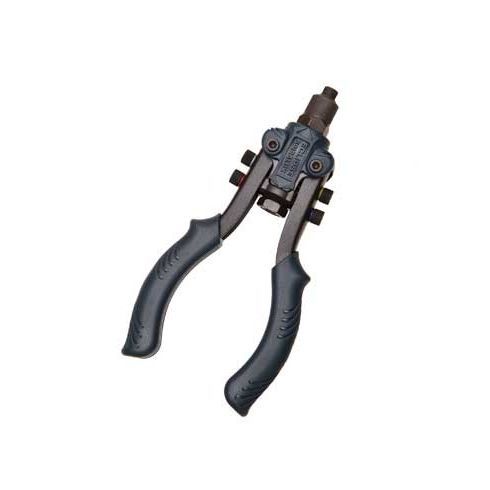

MINI LEVER ARM RIVETER ECLIPSE
Description
Approximately 20% lighter and smaller than the Compact Riveter 2760C Requires less effort and is easier to use than traditional gun type riveters Requires fewer pulls to successfully pop rivets Fits conveniently into toolboxes Perfect for use in restricted spaces Easier on the arms and shoulder when popping lots of rivetsNose Steel, Blacked & Knurled
Nose dia. length and A/f size: 23.5 dia. x 31mm long & 24mm a/f
Body Pantone 282C
Blue Plastic moulding on steel Body width, breadth and length: 60 x 47 x 63.4mm excl. nut
Levers Steel formed to 25 x 14 x 2mm thick.
Lever length from Body: 200 ± 5mm
Levers to Body Spring loaded and secured by M6 Cap screws & lock nutsStrong 3-piece alloy steel jaw mechanism with hexagonal internal structure for a longer life and easy operating
Reinforced 2mm thick Carbon Steel heat-treated handle for extra strength and durability
Ergonomically designed handles for comfortable use
Contains rivet noses for use with 2.4mm, 3.2mm, 4.0mm, 4.8mm and 6.4mm aluminum and steel rivets To operate, pre-drill holes into the items
Noses are colour coded by size for easy identification and may be conveniently changed with no need for extra tools
To operate, pre-drill holes into the items being joined together, the optimum drill size is 0.1mm biggee than the size of the rivet
Spare replacement jaws and noses are available
